Product Information
36,200 RSD sa PDV-om

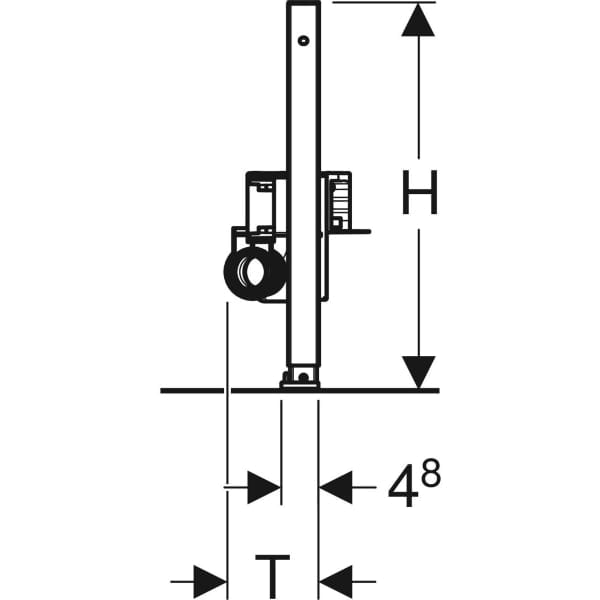

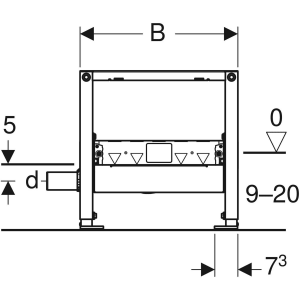

Geberit Duofix element for shower, 50 cm, with wall drain, for screed height at inlet 90–200 mm.
DN: 50
d, ø: 50 mm
B: 50 cm
H: 50 cm
T: 11 cm
SKU: 111.591.00.1
Geberit Duofix element for shower 50 cm, for screed height 90–200 mm
Technical data
- Discharge rate: 0.8 l/s
- Depth of water seal: 50 mm
Application purposes
- For drywall construction
- For installation in part- or room-height Geberit Duofix system walls
- For drainage of floor-even showers
- For composite seals
- For screed height ≥ 90 mm at inlet
Characteristics
- Quality-monitored in accordance with EN 1253-3
- Self-supporting frame, powder-coated
- Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system rails
- Adjustable inlet height of trap
- Panelling thickness 10–40 mm
- Suitable for tile structures on floor 2–26 mm
- Suitable for tile structures on wall 2–35 mm
- Adjustable sealing level for tension-free sealing connection
- Lateral drainage connection
- Premounted sealing fleece
- Sealing fleece, 10 cm circumferential, for connecting sealing systems
Scope of delivery
- Straight connector made of PE-HD, ø 50 mm
- Protection box cover with integrated outlet sheet
- Fastening material
To order additionally for Geberit Duofix element for shower 50 cm, for screed height 90–200 mm
- Ready-to-fit set
| Dimensions | 50 × 12.5 × 50 cm |
|---|
Deklaracija
Proizvođač: Geberit
Zemlja porekla: Nemačka
Uvoznik: Delta Term doo Beograd Svetog Save 26
