Product Information
46,300 RSD sa PDV-om

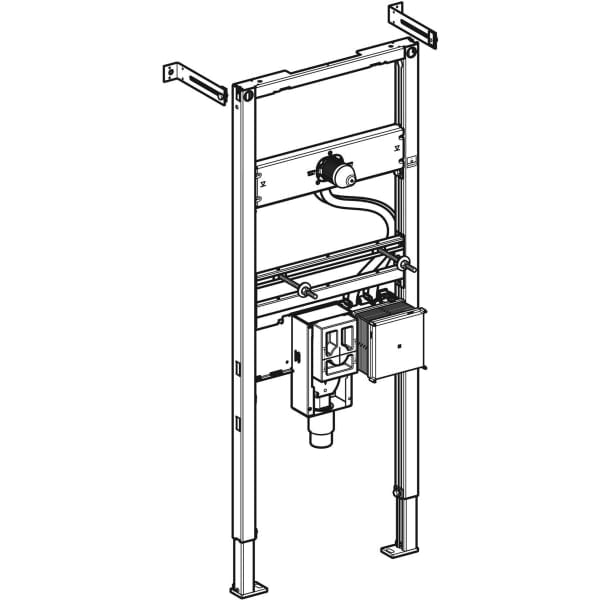

Geberit Duofix element for washbasin, 130 cm, electronic wall-mounted tap with concealed function box, with concealed trap.
B: 50cm
H: 130 cm
T: 7.4 cm
SKU: 111.562.00.1
Geberit Duofix element for washbasin 130 cm, electronic wall-mounted tap, with concealed trap
Technical data
- Product material: Steel
Application purposes
- For drywall construction
- For masonry walls
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For installation in part- or room-height Geberit Duofix system walls
- Suitable for barrier-free construction
- For installation of washbasins
- For Geberit washbasin taps Piave and Brenta, wall-mounted, with concealed function box
- For floor constructions 0–20 cm
Characteristics
- Self-supporting frame, powder-coated
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet
- Feet adjustable 0–20 cm
- Non-slip leg supports
- Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Fastening distance for washbasin 5–38 cm
- Tap crossbar height-adjustable
- Premounted fastening for wall-mounted tap
- Concealed trap with optimum flow guidance and high self-cleaning effect
- Concealed trap can be height-adjusted ± 3 cm during final installation
- In-wall cabinet with straight connector made of PP, ø 50 mm
- Water supply connection compatible with MasterFix and MeplaFix
- Water supply connection on the bottom of concealed housing
- Fastening for connection bend, height-adjustable and sound-absorbing
- Concealed housing for Geberit washbasin tap, wall-mounted, for concealed function box, premounted
- Premounted connection pipes between concealed housing and fastening for wall-mounted tap
- Shut-off unit integrated in the concealed housing
Scope of delivery for Geberit Duofix element for washbasin 130 cm, electronic wall-mounted tap, with concealed trap
- 2 fixing brackets
- 2 threaded rods M10
- Protection box
- Protection box with cover, for concealed housing
- Protection box for fastening of wall-mounted tap
- Fastening material

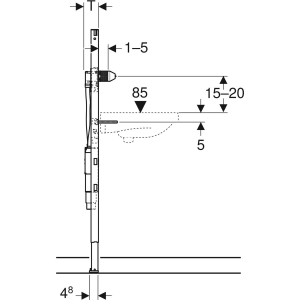

| Dimensions | 50 × 7.4 × 130 cm |
|---|
Deklaracija
Proizvođač: Geberit
Zemlja porekla: Nemačka
Uvoznik: Delta Term doo Beograd Svetog Save 26
