Product Information
50,650 RSD – 56,300 RSD sa PDV-om

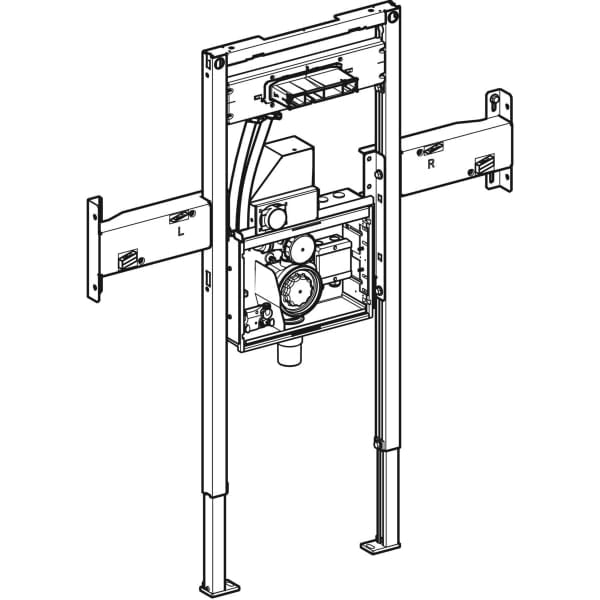

Geberit Duofix element for Geberit ONE washbasin and Geberit ONE wall-mounted tap, part-height, with concealed turn trap, with concealed Clou.
SKU: 111.094.00.1-1
Geberit Duofix element for Geberit ONE washbasin and Geberit ONE wall-mounted tap, part-height
Technical data
- Product material: Steel
Application purposes
- For drywall construction
- For installation in part-height prewall installations
- For installation in part-height Geberit Duofix system walls
- Suitable for less-abled installation
- For Geberit ONE washbasins
- For Geberit ONE vanity basins
- For Geberit ONE washbasin taps wall-mounted , for Geberit ONE frame
- For floor constructions 0–20 cm
Characteristics
- Self-supporting frame, powder-coated
- Suitable for Geberit ONE
- Frame with ø 9 mm drilling holes for fastening in wood frame construction
- Galvanized feet
- Feet adjustable 0–20 cm
- Non-slip leg supports
- Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Tap crossbar height-adjustable
- Premounted fastening for wall-mounted tap
- Concealed turn trap with service opening
- In-wall cabinet with straight connector made of PE, ø 50 / 56 mm
- Water supply connection compatible with MasterFix and MeplaFix
- Water supply connection on the bottom of concealed housing
- Concealed housing for Geberit ONE washbasin tap, premounted
- Premounted connection pipes between concealed housing and fastening for wall-mounted tap
- Shut-off unit integrated in the concealed housing
- Outlet mounting box in concealed housing
Scope of delivery for Geberit Duofix element for Geberit ONE washbasin and Geberit ONE wall-mounted tap, part-height
- 2 consoles
- Protection covers
- 2 threaded rods M10
- Female socket for mains connection
- Fastening material

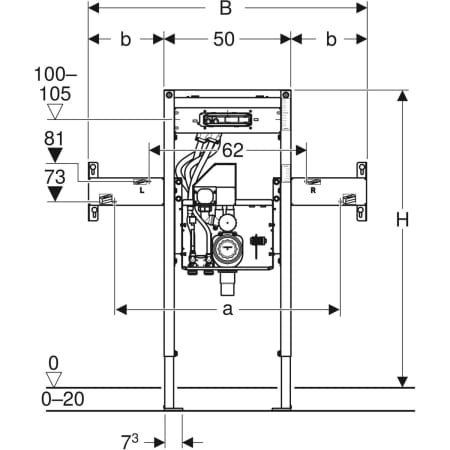

| Dimensions | N/A |
|---|---|
| Washbasin width | 75 cm, 90 cm, 105 cm, 120 cm |
